DOUBLE END BOX WRENCH, offset type, 12-point

DOPPELRINGSCHLUSSEL, geKRÖPFT, 12-kant, milimetergrößen
DOUBLE END BOX WRENCH, offset type, 12-point, Milimeter Sizes

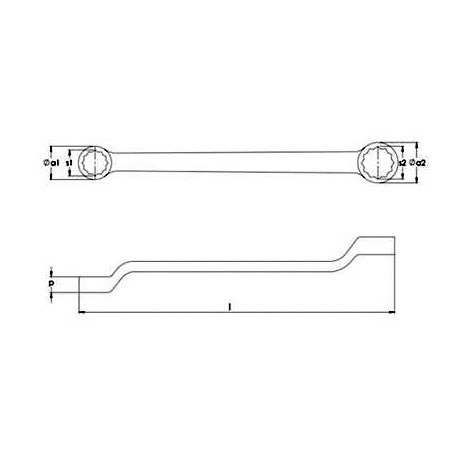

Nummer	s1 x s2	a1	a2	p	l
Number	mm	mm	mm	mm	mm	g
201000	6x7	11	12	8	155	40
201002	7x9	12	14	8	155	40
201004	8x9	13	15	8	155	40
201006	8x10	14	17	12	170	77
201008	9x11	15	17	12	170	77
201010	10x11	16	18	12	170	77
201012	10x12	17	20	12	180	105
201014	11x12	19	20	12	180	105
201016	12x13	20	21	12	180	105
201018	10x14	17	22	12	200	130
201020	11x14	19	22	13	200	130
201022	12X14	20	22	12	200	130
201024	13X15	21	24	13	220	180
201026	14X15	22	24	13	220	180
201028	14X17	22	27	14	230	200
201030	16X17	26	27	15	260	255
201032	16X18	26	28	14	260	255
201034	17X19	27	30	15	280	300
201036	18X19	28	30	15	280	300
201038	17X22	27	34	15	330	420
201040	19X22	30	34	15	330	420
201042	19X24	30	38	18	330	420
201044	20X22	31	34	16	330	420
201046	21X23	31	35	15	330	420
201048	22X24	35	38	18	360	560
201050	24X26	38	41	17	360	560
201052	22X27	35	43	18	400	660
201054	24X27	38	43	18	400	660
201056	25X28	39	43	19	400	660
201058	24X30	38	47	18	410	820
201060	27X30	43	47	18	410	820
201061	28X30
201062	27X32	43	50	19	410	820
201064	30X32	47	50	19	430	820
201066	30X36	47	56	21	480	1350
201068	32X36	50	56	21	480	1350
201069	34X36
201070	36X41	56	64	22	510	1750
201072	41X46	64	72	26	580	2550
201074	46X50	72	79	27	630	3300
201076	50X55	79	87	28	690	4250
201078	50X60	79	96	28	740	4250
201080	55X60	88	96	32	740	5300
