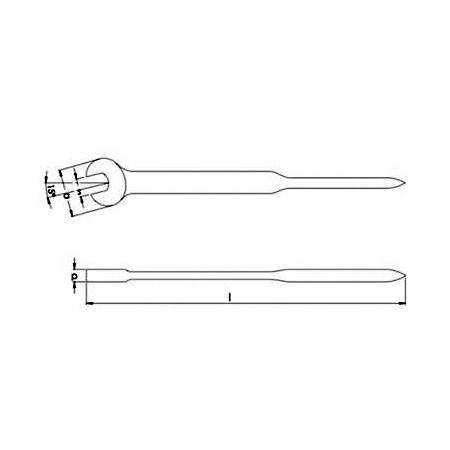

MONTAGESCHLUSSEL, mit Dorn, MilimetergröBen | |||||
CONSTRUCTION WRENCH, with pin, Milimeter Sizes | |||||
Nummer | s | a | p | l | |
Number | mm | mm | mm | mm | g |
203400A | 12 | ||||
203400B | 13 | ||||
203400C | 14 | ||||
203400D | 15 | ||||
203400 | 17 | 41 | 13 | 320 | 270 |
203402 | 18 | 41 | 13 | 320 | 270 |
203404 | 19 | 50 | 15 | 350 | 465 |
203406 | 20 | 50 | 15 | 350 | 465 |
203408 | 21 | 50 | 15 | 350 | 465 |
203410 | 22 | 50 | 15 | 350 | 465 |
203412 | 23 | 64 | 16 | 370 | 650 |
203414 | 24 | 64 | 16 | 370 | 650 |
203416 | 25 | 64 | 16 | 370 | 650 |
203418 | 26 | 64 | 16 | 370 | 650 |
203420 | 27 | 64 | 16 | 370 | 650 |
203422 | 28 | 75 | 18 | 400 | 950 |
203424 | 29 | 75 | 18 | 400 | 950 |
203426 | 30 | 75 | 18 | 400 | 950 |
203428 | 32 | 75 | 18 | 400 | 950 |
203430 | 33 | 75 | 18 | 400 | 950 |
203432 | 34 | 75 | 18 | 400 | 950 |
203434 | 35 | 85 | 20 | 430 | 1400 |
203436 | 36 | 85 | 20 | 430 | 1400 |
203438 | 37 | 85 | 20 | 430 | 1400 |
203440 | 38 | 85 | 20 | 430 | 1400 |
203442 | 41 | 94 | 23 | 470 | 1900 |
203444 | 42 | 94 | 23 | 470 | 1900 |
203446 | 46 | 106 | 26 | 500 | 2700 |
203448 | 47 | 106 | 26 | 500 | 2700 |
203450 | 50 | 114 | 28 | 530 | 3550 |
