MAULSCHLAGSCHLÜSSEL, MillimetergröBen | ||||||

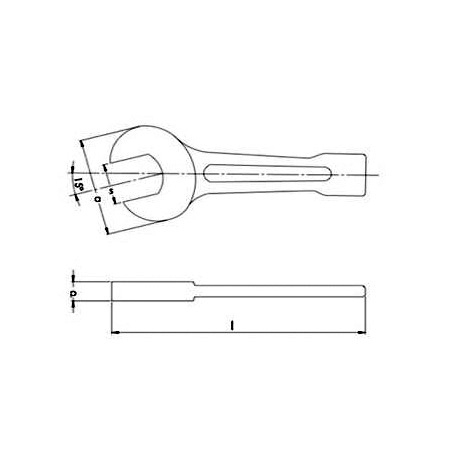

STRIKING OPEN END WRENCH, Millimeter Sizes | ||||||
Nummer | s | a | p | l | c | |
Number | mm | mm | mm | mm | mm | g |
201600A | 24 | |||||
201600 | 27 | 58 | 17 | 180 | 10,2 | 380 |
201602 | 28 | 58 | 17 | 180 | 10,2 | 380 |
201604 | 29 | 58 | 17 | 180 | 10,2 | 380 |
201606 | 30 | 64 | 17 | 190 | 10,2 | 440 |
201608 | 32 | 64 | 17 | 190 | 10,2 | 440 |
201610 | 33 | 64 | 17 | 190 | 10,2 | 440 |
201612 | 34 | 64 | 17 | 190 | 10,2 | 440 |
201614 | 35 | 76 | 19 | 215 | 11,4 | 750 |
201616 | 36 | 76 | 19 | 215 | 11,4 | 750 |
201618 | 37 | 76 | 19 | 215 | 11,4 | 750 |
201620 | 38 | 76 | 19 | 215 | 11,4 | 750 |
201622 | 41 | 86 | 21 | 235 | 12,6 | 1150 |
201624 | 42 | 86 | 21 | 235 | 12,6 | 1150 |
201626 | 46 | 98 | 22 | 255 | 13,2 | 1400 |
201628 | 47 | 98 | 22 | 255 | 13,2 | 1400 |
201630 | 50 | 105 | 22 | 275 | 13,2 | 1600 |
201632 | 52 | 105 | 22 | 275 | 13,2 | 1600 |
201634 | 54 | 105 | 22 | 275 | 13,2 | 1600 |
201636 | 55 | 116 | 24 | 300 | 14,4 | 1800 |
201638 | 56 | 116 | 24 | 300 | 14,4 | 1800 |
201640 | 58 | 116 | 24 | 300 | 14,4 | 1800 |
201642 | 60 | 128 | 25 | 320 | 15,0 | 2500 |
201644 | 63 | 128 | 25 | 320 | 15,0 | 2500 |
201646 | 65 | 138 | 29 | 340 | 17,4 | 3700 |
201648 | 67 | 138 | 29 | 340 | 17,4 | 3700 |
201650 | 70 | 154 | 32 | 375 | 19,2 | 4000 |
201652 | 71 | 154 | 32 | 375 | 19,2 | 4000 |
201654 | 75 | 154 | 32 | 375 | 19,2 | 4000 |
201656 | 77 | 154 | 32 | 375 | 19,2 | 4000 |
201658 | 80 | 174 | 37 | 410 | 22,3 | 6300 |
201660 | 82 | 174 | 37 | 410 | 22,3 | 6300 |
201662 | 85 | 174 | 37 | 410 | 22,3 | 6300 |
201664 | 88 | 174 | 37 | 410 | 22,3 | 6300 |
201666 | 90 | 194 | 40 | 445 | 24,0 | 8000 |
201668 | 94 | 194 | 40 | 445 | 24,0 | 8000 |
201670 | 95 | 194 | 40 | 445 | 24,0 | 8000 |
201672 | 100 | 194 | 40 | 445 | 24,0 | 8000 |
201674 | 105 | 194 | 40 | 485 | 24,0 | 9000 |
201676 | 110 | 510 | 19500 | |||
201678 | 115 | 510 | 19500 | |||
201680 | 120 | 545 | 22000 | |||
201682 | 125 | 545 | 23000 | |||
201684 | 130 | 575 | 26000 | |||
201686 | 135 | 575 | 28000 | |||
201688 | 145 | 640 | 32000 | |||
201690 | 150 | 640 | 36000 | |||
201692 | 155 | 640 | 38000 |
